Vintage Retro Classic Antique Narrow Rim Door Lock Round Cottage Plain Knob Set

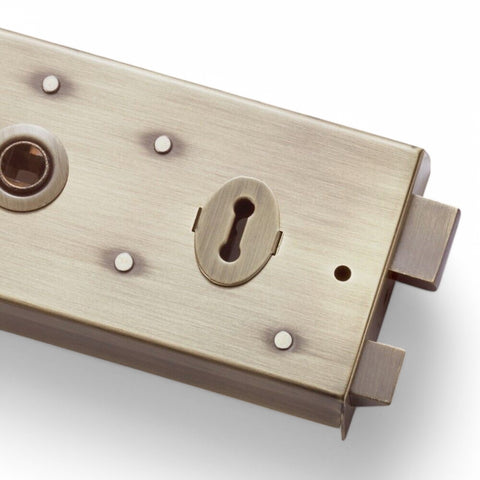

Introducing our Antique Brass Narrow Style Rim Lock, complete with a solid brass cottage rim door knob pair in an antique brass finish, two keys, and all the necessary fixing screws.

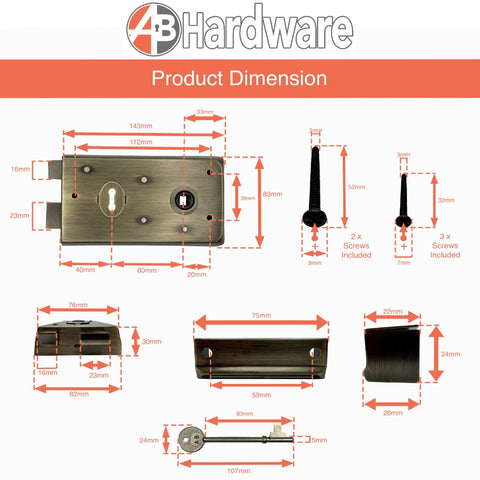

Approximate Dimensions:

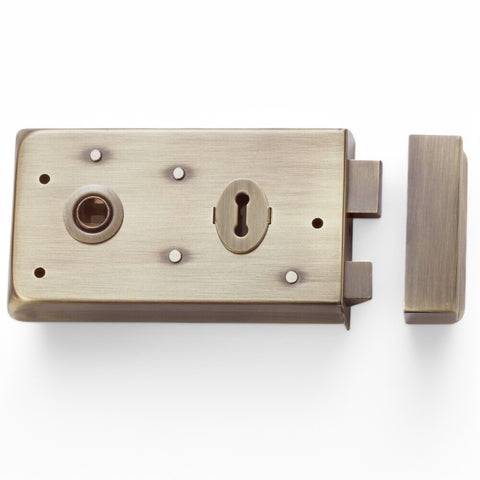

Lock:

• Length: 142mm
• Width: 83mm
• Depth: 22mm
• Edge of lock to centre of keyhole: 43mm
• Edge of lock to centre of square latch: 104mm
• Latch is reversible - Can be changed by hand

Keep:

• Length: 95mm
• Depth: 25mm

Screws:

• 2 x 55mm
• 3 x 30mm

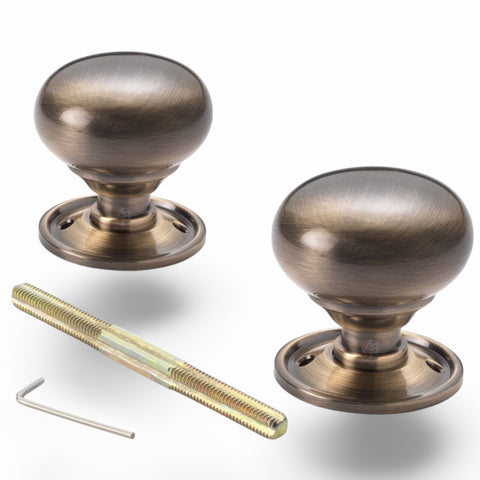

Door Knob Pair:

• Knob Diameter: 52mm
• Backplates: 50mm
• Projection: 70mm
• Threaded Spindle: 7x7mm square, 110mm long
• Includes 4 fixing screws and 2 grub screws (the grub screws secure the knob to the threaded spindle)

This versatile, surface-mounted rim lock is designed for key operation and is ideal for spaces requiring privacy, such as bathrooms and bedrooms. It can be fitted to both left and right hand opening doors, with the latch easily reversible by hand. Constructed from high-quality steel with solid brass fittings, it’s suitable for both internal and external use and can be locked from either side.
