Black Brass Rim Latch Lock Polished Nickel Reeded Door Knobs

Black Brass Rim Latch Lock with Polished Nickel Reeded Door Knobs

This set includes a traditional surface-mounted rim latch lock with a matching keep and a pair of polished nickel reeded door knobs. It is suitable for internal doors where a classic rim lock setup is required.

Rim Lock Details

• Type: Rim Lock - Black Brass Rim Latch
• Material: Mild steel
• Finish: Black / brass
• Latch reversible: No

Rim Lock Dimensions

• Width: 107mm
• Height: 84mm
• Projection: 22mm
• 76mm from spindle hole to edge of lock

Keep Dimensions

• Width: 23mm
• Height: 75mm
• Projection: 23mm

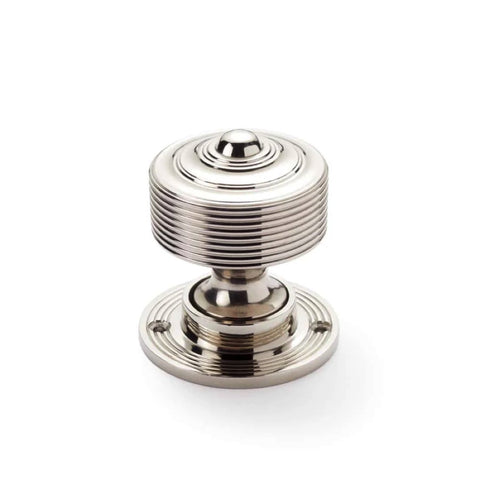

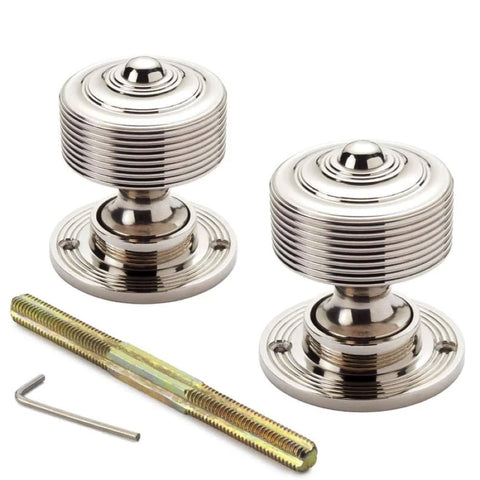

Door Knob Details

• Design: Reeded
• Material: Solid brass
• Finish: Polished nickel
• Use: Suitable for rim locks and mortice locks

Door Knob Dimensions

• Knob diameter: 55mm
• Backplate diameter: 60mm
• Projection: 65mm
• Threaded spindle: 110mm

The rim latch is not reversible and must be fitted to suit the door handing. Reeded backplates are removable to allow flexible installation.
