Cast Iron Floral Rim Lock 40mm Polished Brass Cottage Door Knobs

Cast Iron Floral Rim Lock with 40mm Polished Brass Cottage Door Knobs

Rim Lock

This cast iron floral rim lock is hand-finished in pewter and designed to suit both left and right-handed doors. The decorative floral detailing makes it well suited to period, cottage, and traditional interiors.

Rim Lock: Cast Iron Floral Rim Lock
Material: Cast Iron
Finish: Pewter
Can Latch Be Reversed?: No

Lock Dimensions

• Width: 105mm
• Height: 80mm
• Projection: 17mm
• Backset: 3" from spindle hole to edge of lock

Keep Dimensions

• Width: 20mm
• Height: 80mm
• Projection: 17mm

A matching pewter-finished keep is supplied, measuring 80mm high by 20mm wide, providing a secure and consistent traditional finish.

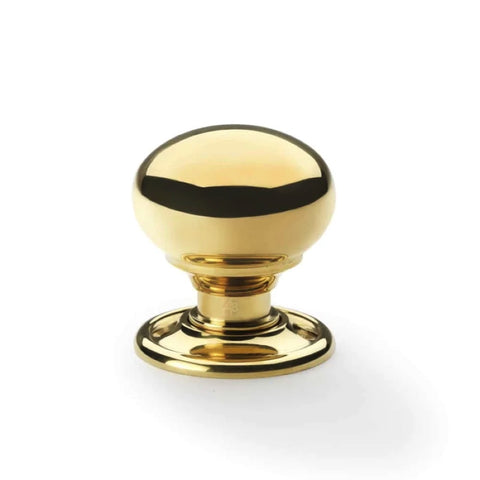

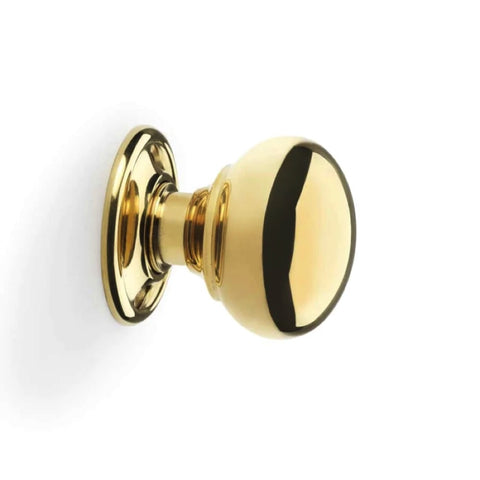

Door Knobs

Door Knob Dimensions

• Knob Diameter: 40mm
• Backplates: 42mm
• Projection: 46mm
• Threaded Spindle: 110mm

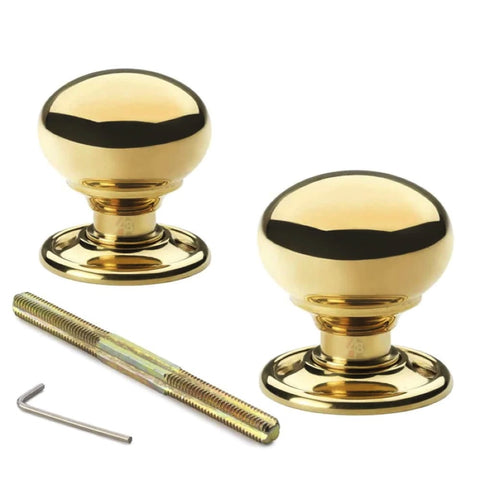

These solid brass cottage door knobs are finished in polished brass and supplied with a 7mm threaded spindle and all necessary fixing screws. The unsprung design allows for smooth operation when used with suitable latches or rim locks.

Both backplates are removable, allowing the knobs to be used either as rim knobs with rim locks or as mortice knobs with a tubular mortice latch. This makes them a flexible choice for a wide range of door types and installations.
