Black Brass Flanged Rim Lock with 40mm Polished Brass Cottage Door Knobs
This black brass flanged rim lock is supplied with 40mm polished brass cottage door knobs, creating a compact and traditional door furniture set ideal for cottages, period properties, and smaller internal doors.
The rim lock is surface mounted and key operated, making it well suited to bedrooms, bathrooms, timber doors, sheds, gates, and greenhouses where privacy is required. It is supplied complete with two keys and all fixing screws for straightforward installation.
Please note: the latch is fully reversible and can be adjusted by hand, allowing the lock to be fitted to both left and right-hand opening doors.
Rim Lock Details
- Type: Flanged Rim Lock
- Material: Iron
- Finish: Black / Brass
- Latch: Reversible
- Keys Supplied: 2
Rim Lock Dimensions
- Width: 155mm
- Height: 105mm
- Projection: 22mm
- Backset (spindle hole to lock edge): 104mm
Keep Dimensions
- Width: 95mm
- Height: 28mm
- Projection: 25mm

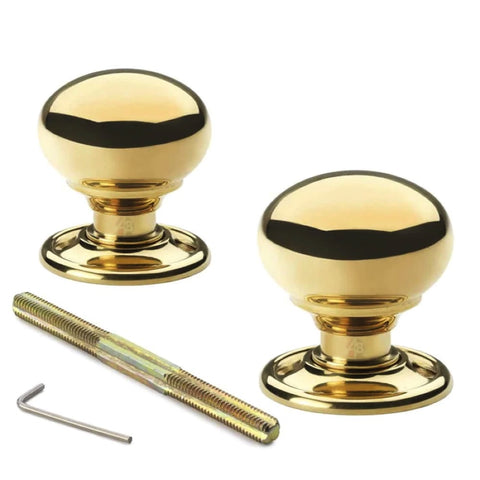

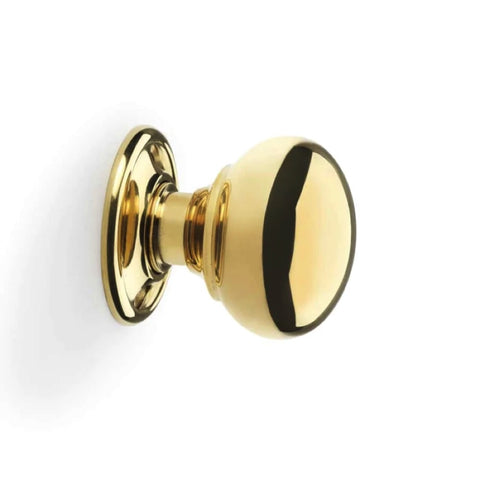

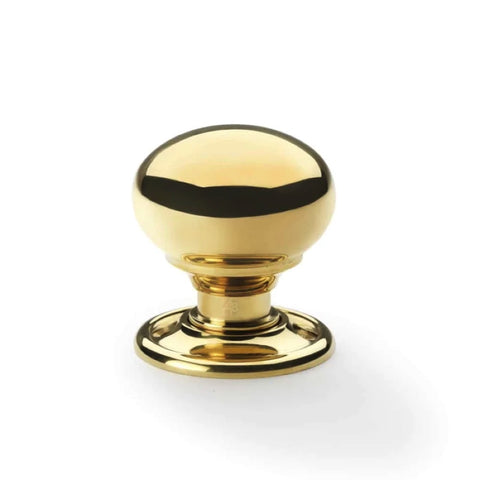

Door Knobs
The 40mm cottage door knobs are manufactured from solid brass and finished in polished brass, offering a classic appearance that complements traditional interiors. Their smaller diameter makes them ideal for lighter doors while still providing a comfortable grip.
Supplied with a 7mm threaded spindle, all fixing screws, and removable backplates, these knobs can be used with the supplied rim lock or fitted as mortice knobs with a tubular latch, offering excellent flexibility.
The unsprung design ensures smooth, reliable operation and long-term durability.
Door Knob Dimensions
- Knob Diameter: 40mm
- Backplates: 42mm
- Projection: 46mm
- Threaded Spindle: 110mm
