Large Victorian Gothic Rim Lock Heavy Satin Brass Beehive Door Knobs

Large Victorian Gothic Rim Lock Heavy Satin Brass Beehive Door Knobs

This traditional surface-mounted rim lock set pairs a large Victorian Gothic rim lock with heavy solid brass beehive door knobs in a satin brass finish. A premium choice for period-style internal doors.

Rim lock details

• Type: Rim lock (surface-mounted)
• Material: Iron
• Finish: Pewter
• Latch reversible: No

Rim lock dimensions

• Width: 130mm
• Height: 93mm
• Projection: 25mm
• Spindle hole to edge: 4 inch (approx. 100mm)

Keep details and dimensions

• Width: 22mm
• Height: 115mm
• Projection: 29mm

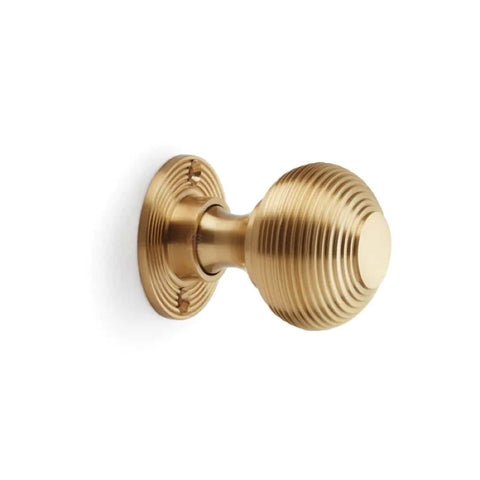

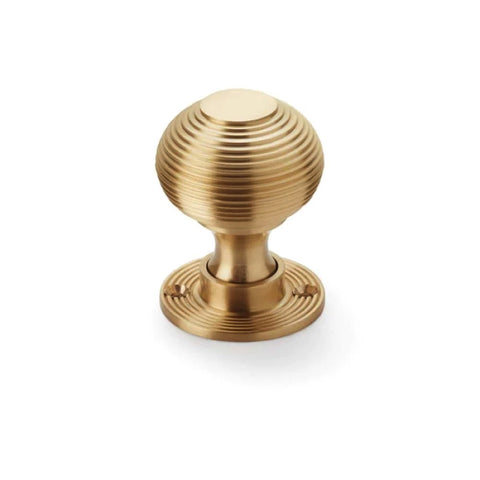

Door knob details

• Knob material: Solid brass
• Knob style: Beehive
• Finish: Satin brass
• Backplates: Solid brass
• Weight: Approx. 1kg per pair
• Spindle: Threaded spindle

Door knob dimensions

• Knob diameter: 50mm
• Backplate diameter: 50mm
• Projection: 64mm
• Threaded spindle length: 110mm

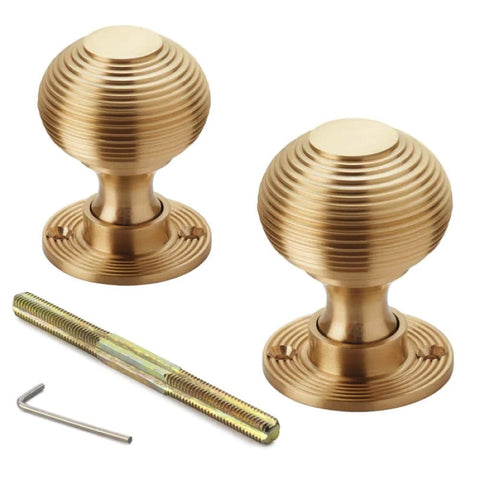

What is included

• Large Victorian Gothic rim lock
• Matching keep
• Pair of heavy satin brass beehive door knobs
• 110mm threaded spindle
• Fixing screws

Important notes

• The rim lock latch is not reversible.
• Suitable for internal doors.
• Compatible with rim locks and mortice locks.
